Awning Window

Like all our products, Hurd awning windows are custom made, by hand, to your exact specifications. We think you’ll notice the difference in how they look and how they perform.

Awning windows are a great choice when you want the fresh air of an open window even if it’s raining. Hurd awning windows are commonly used alone or combined underneath a large picture window to provide ventilation.

Technical Description

Construction

Exterior clad with .050” extruded aluminum.
Natural pine interior standard. Prime, paint or stain optional.
Alternate wood species optional.
CoreGuard wood treatment.
Basic jamb width 4-9/16”

Performance Glazing

Available in all Hurd Eco System options except FeelSafe.

Weatherproofing

Perimeter weatherstrip on sash and frame.
Positive locking mechanism draws sash tightly against weatherstrip.

Operation

Encore folding handle with geared dual arm operator.
Concealed sliding nylon shoe hinges applied directly to sash for clean exterior.
Stainless steel hinge track located for maximum support.
Guide bar operable system.
Sash locks standard.
Options

Decorative glazing: Bronze, gray, obscure or stained glass.
Grilles: Hurd simulated divided lite, removable wood grilles or grilles in airspace.
Screens: Aluminum frame with charcoal color fiberglass cloth standard, aluminum mesh optional.
Screen frame options: goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone, antique brass or matching wood species.
Hardware: Encore folding handle standard in 11 designer finishes. 300 series stainless steel corrosion-resistant operator and arms optional.

Other options:

Standard extension jambs available up to 8-1/8”.
Extruded aluminum drip cap.
Applied aluminum clad brickmould, ovalo or flat casing.
Non-standard sizing to 1/16”.

Performance Glass

Super Sun Blocker
With an amazing triple layer of silver Super Sun Blocker glazing delivers an ideal balance of thermal performance, solar control, 95% UV protection and high visibility.
Super-Sun-Blocker
Low-E 366
Cardinal’s Low-E 366 is nearly identical to Super Sun Blocker in technology and performance. However, Super Sun Blocker is significantly more affordable.

Our Low-E 366 is available in 3 versions: standard; Low-E 366 with Preserve® protective film (it peels off after installation so all the splattered paint and construction dirt peel off too); and Low-E 366 with Preserve and Neat® (an ultra-smooth exterior coating that harnesses UV rays to loosen dirt so water can rinse it away almost spotlessly).

Super Sun Blocker With IS-15 Coating
To meet the 2013 Energy Star® standards, we start with all the attributes of triple silver Super Sun Blocker, then add ClimaGuard IS-15. IS-15 is a coating specifically designed to help you achieve a superior R-5 insulation value on many windows without the need for triple glazing.

The IS-15 coating is applied to the interior (room-side) surface of the dual pane IG unit, resulting in improved thermal performance and lower heating costs. Because the coating reflects heat back into the room, the room-side pane of glass will be slightly colder in winter, causing a higher potential for condensation problems.
Super-Sun-Blocker-IS-15

Passive Solar Low-E 80/70
Hurd’s new Passive Solar Low-E 8070 glazing has a very high (0.69) solar heat gain coefficient. That means it’s ideal for capturing the sun’s heat in colder climates and reducing your winter heating bills. It also has a superior insulation value (R-3.8) to block out the cold and keep in the heat.
Passive-Solar-Low-E-80-70

Triple Pane Low-E
For the superior thermal performance of triple pane windows, specify our energy-efficient Triple Pane Low-E glazing. Choose one or two surfaces of low-E coating, for improved insulation values, reduced solar heat gain, and protection from harmful UV rays.
Triple-Pane-Low-E

Dual Pane Low-E
Insulated for improved energy efficiency. Single surface Low-E coating to reduce solar heat gain and block UV rays.
Dual-Pane-Low-E

Insulated Glass
For moderate climates, our Insulated Glass may deliver the performance you’re looking for.
Insulated-Glass

Sound Control
Our Sound Control glazing reduces outside noise by as much as 50% while also blocking 99% of harmful UV rays. Since it’s laminated, it also provides important shatter resistance to reduce the risk of injury from broken glass. It’s available as a dual pane insulated IG or as a single pane non-insulated glass.
Sound-Control

Decorative Glass


Gluechip

Spraylite

Standard Obscure

Niagara Ann (Rain)

English Reed

Velour

White Laminated

Beveled Edge

V-Groove

Grilles

Hurd Simulated Divided Lites

H3- SIMULATED DIVIDED LITES-grill
Our simulated divided lites give you the classic appeal of traditional true divided lites, but without the energy loss caused by individual glass panes. Matching extruded aluminum or all-wood outside, natural wood inside, and optional spacers between the glass.

Traditional
Traditional
Super Regal
Super Regal
Regal
Regal
Flat Bar
Flat Bar
Modern
Modern
Putty
Putty


Grilles in Airspace

H3-GRILL IN AIR SPACE
This is the easiest way to achieve the divided lite look. We actually seal the grille between the panes of glass. So you get the visual appeal you want without the grille ever getting in your way. Grilles in airspace come in your choice of profiles: 11/16” or 1” contour or 5/8” flat. Two-tone grilles also available.

airspace-flat-profile
Flat Profile
airspace-contour-profile
Contour Profile


Removable Wood Grilles

removable-wood-grill
Our removable wood grille is the affordable, convenient alternative to divided lites. Simply pop out the grille, wash the window, and pop it back in. Available as full surround in select pine or optional wood species.

Flatbar - Wood
Flat Bar
Modern Wood
Modern
Regal Wood
Regal
Wood traditional
Traditional
Super Regal Wood
Super Regal

Beautiful Woods


Alder

Cherry

Maple

Mahogany

Pine

Walnut

White Oak

Vertical Grain Douglas Fir

Red Oak

Factory Finish


Ultra Stain Clear Coat

Ultra Stain Espresso

Ultra Stain Toffee

Ultra Coat White

Hardware

Hardware Finish


Brushed Nickel

Antique Brass

Bright Brass

Bronze

Brushed Chrome

Champagne (standard)

Coppertone

Goldtone

Oil-Rubbed Bronze-FB

Polished Chrome

White

Interior Trim


Tudor
Shown in pine 3-1/2” wide

Heritage
Shown in oak 2-3/4” wide

Heritage II
Shown in pine 2-3/4” wide

Traditional
Shown in pine 2-1/4” wide

Contemporary
Shown in pine 2-1/4” wide

Prairie
Shown in pine 3-1/2” wide

Tradesman
Shown in oak 3-1/2” wide

Tradesman II
Shown in pine 3-1/2” wide

Craftsman
Shown in oak 3-1/2” wide

Continental
Shown in Oak 3-1/2″ wide

Colonial
Shown in oak 3-1/2” wide

Regal
Shown in pine 3-1/2” wide

Provincial
Shown in oak 3-1/2” wide

Exterior Trim

Exterior Clad Trim Profiles


2.5” Ovalo

2” Brickmould

3.5” Brickmould

3.5” Flat Casing

Cladding Colors

The exterior of Hurd windows is fully encased in maintenance-free, heavy-duty, extruded aluminum.

Our cladding is at least twice as thick as competitors’ roll-form cladding.
15 standard cladding colors, or we’ll custom match any color you can imagine.
Zero-VOC, AAMA 2604 powder paints, heat-cured for a harder, tougher finish.

Standard Clad Color


Burnt Sun

Eggshell

Colonial White

Dried Wheat

Sand

Patina Green

Aspen Moss

Bronze

Green

Sage Brown

Bahama Brown

Brick Red

Boysenberry

Jet Black

White

Trend Colors


Silver Ice

Gray Velvet

Battleship Gray

Copper Sun

Hampton Blue

Cadet Blue

Oceanside Blue

Anodized Clad


Clear Anodized

Champagne Anodized

Light Bronze Anodized

Medium Bronze Anodized

Dark Bronze Anodized

Due to viewing limitations, the colors shown here are only representative. See your local distributor for actual cladding samples.

Screens

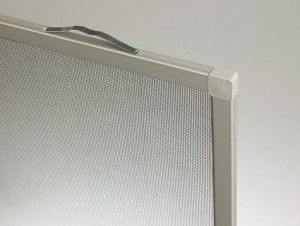

std-screen

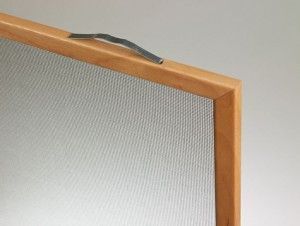

wood-screen

Standard screen or optional wood-wrapped screen available for casements and awnings.

Standard screen is charcoal fiberglass cloth. Better Vue™ screen cloth optional for improved visibility.

Optional Styles

Sizing

Aluminum Clad Wood Awning Window Sizing
