Exterior clad with .050” extruded aluminum.
Natural pine interior standard. Prime, paint or stain optional.
Alternate wood species optional.
CoreGuard wood treatment.
Basic jamb width 4-9/16”.
Available in all Hurd Eco System options except FeelSafe.
Perimeter weatherstrip on sash and frame.
Positive locking mechanism draws sash tightly against weatherstrip.
Encore folding handle with geared operator.
Dual arm operator opens a full 90 degrees.
Contemporary DLX single lever sash lock.
Concealed sliding nylon shoe hinges applied directly to sash for clean exterior.
Adjustable stainless steel hinge track for maximum support.
Decorative glazing: Bronze, gray, obscure or stained glass.
Grilles: Hurd simulated divided lite, removable wood grilles or grilles in airspace.
Screens: Aluminum frame with charcoal color fiberglass cloth standard, aluminum mesh optional.
Screen frame options: goldtone, white, bronze, champagne, oil-rubbed bronze, brushed chrome, bright brass, coppertone, antique brass or matching wood species.
Hardware: Encore folding handle standard in 11 designer finishes. 300 series stainless steel corrosion-resistant operator and dual arms optional.
Standard extension jambs up to 8-1/8”.
Extruded aluminum drip cap.

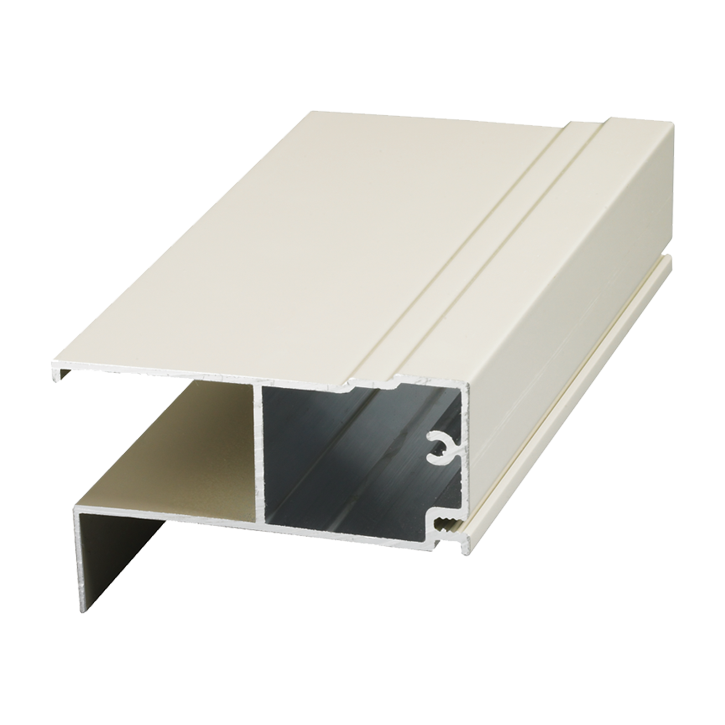

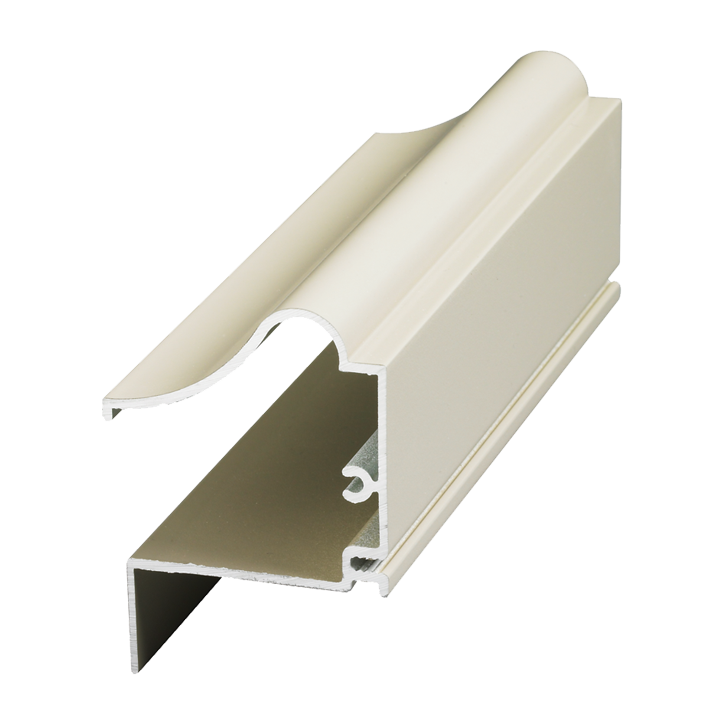

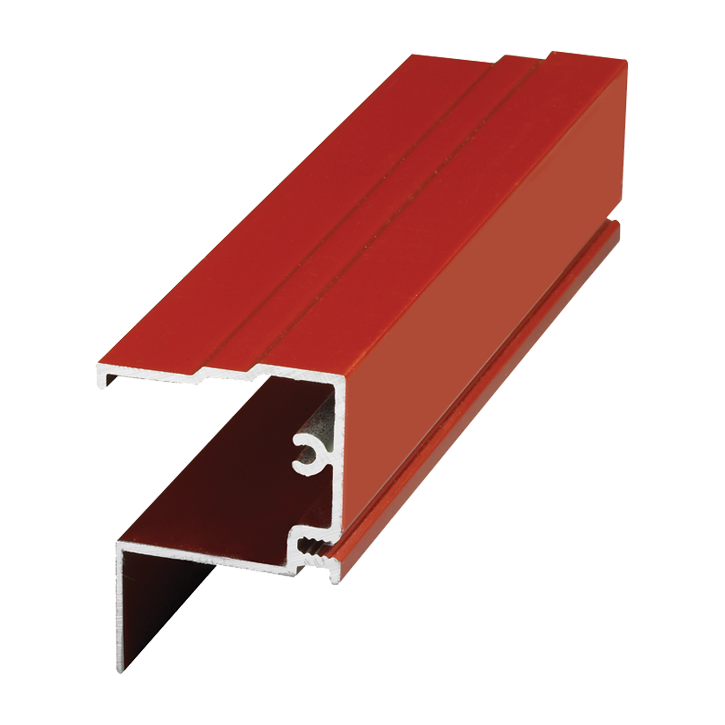

Applied aluminum clad brickmould, ovalo or flat casing.
Non-standard sizing to 1/16” available.
Super Sun Blocker
With an amazing triple layer of silver Super Sun Blocker glazing delivers an ideal balance of thermal performance, solar control, 95% UV protection and high visibility.
Cardinal’s Low-E 366 is nearly identical to Super Sun Blocker in technology and performance. However, Super Sun Blocker is significantly more affordable.
Our Low-E 366 is available in 3 versions: standard; Low-E 366 with Preserve® protective film (it peels off after installation so all the splattered paint and construction dirt peel off too); and Low-E 366 with Preserve and Neat® (an ultra-smooth exterior coating that harnesses UV rays to loosen dirt so water can rinse it away almost spotlessly).
Super Sun Blocker With IS-15 Coating
To meet the 2013 Energy Star® standards, we start with all the attributes of triple silver Super Sun Blocker, then add ClimaGuard IS-15. IS-15 is a coating specifically designed to help you achieve a superior R-5 insulation value on many windows without the need for triple glazing.
The IS-15 coating is applied to the interior (room-side) surface of the dual pane IG unit, resulting in improved thermal performance and lower heating costs. Because the coating reflects heat back into the room, the room-side pane of glass will be slightly colder in winter, causing a higher potential for condensation problems.
Passive Solar Low-E 80/70
Hurd’s new Passive Solar Low-E 8070 glazing has a very high (0.69) solar heat gain coefficient. That means it’s ideal for capturing the sun’s heat in colder climates and reducing your winter heating bills. It also has a superior insulation value (R-3.8) to block out the cold and keep in the heat.
Triple Pane Low-E
For the superior thermal performance of triple pane windows, specify our energy-efficient Triple Pane Low-E glazing. Choose one or two surfaces of low-E coating, for improved insulation values, reduced solar heat gain, and protection from harmful UV rays.
Dual Pane Low-E
Insulated for improved energy efficiency. Single surface Low-E coating to reduce solar heat gain and block UV rays.
For moderate climates, our Insulated Glass may deliver the performance you’re looking for.
Our Sound Control glazing reduces outside noise by as much as 50% while also blocking 99% of harmful UV rays. Since it’s laminated, it also provides important shatter resistance to reduce the risk of injury from broken glass. It’s available as a dual pane insulated IG or as a single pane non-insulated glass.
Hurd Simulated Divided Lites
Our simulated divided lites give you the classic appeal of traditional true divided lites, but without the energy loss caused by individual glass panes. Matching extruded aluminum or all-wood outside, natural wood inside, and optional spacers between the glass.
Grilles in Airspace
This is the easiest way to achieve the divided lite look. We actually seal the grille between the panes of glass. So you get the visual appeal you want without the grille ever getting in your way. Grilles in airspace come in your choice of profiles: 11/16” or 1” contour or 5/8” flat. Two-tone grilles also available.
Removable Wood Grilles
Our removable wood grille is the affordable, convenient alternative to divided lites. Simply pop out the grille, wash the window, and pop it back in. Available as full surround in select pine or optional wood species.
Exterior Clad Trim Profiles

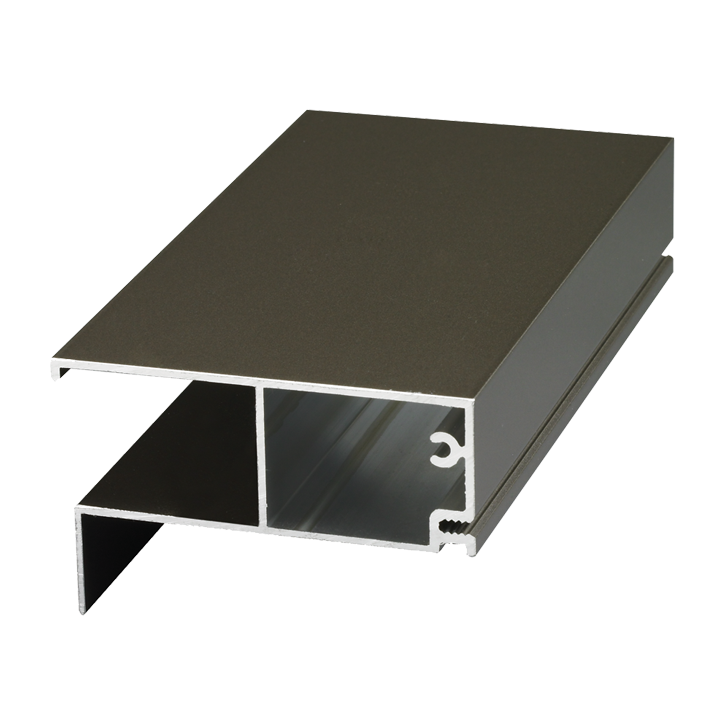

3.5” Flat Casing
The exterior of Hurd windows is fully encased in maintenance-free, heavy-duty, extruded aluminum.
Our cladding is at least twice as thick as competitors’ roll-form cladding.
15 standard cladding colors, or we’ll custom match any color you can imagine.
Zero-VOC, AAMA 2604 powder paints, heat-cured for a harder, tougher finish.
Standard Clad Color
Light Bronze Anodized
Medium Bronze Anodized
Dark Bronze Anodized
Due to viewing limitations, the colors shown here are only representative. See your local distributor for actual cladding samples.
A bay usually consists of a large fixed window between two casement or double hung units.
A bow consists of several casements or double hung units mulled together, creating a smooth arc or bow.

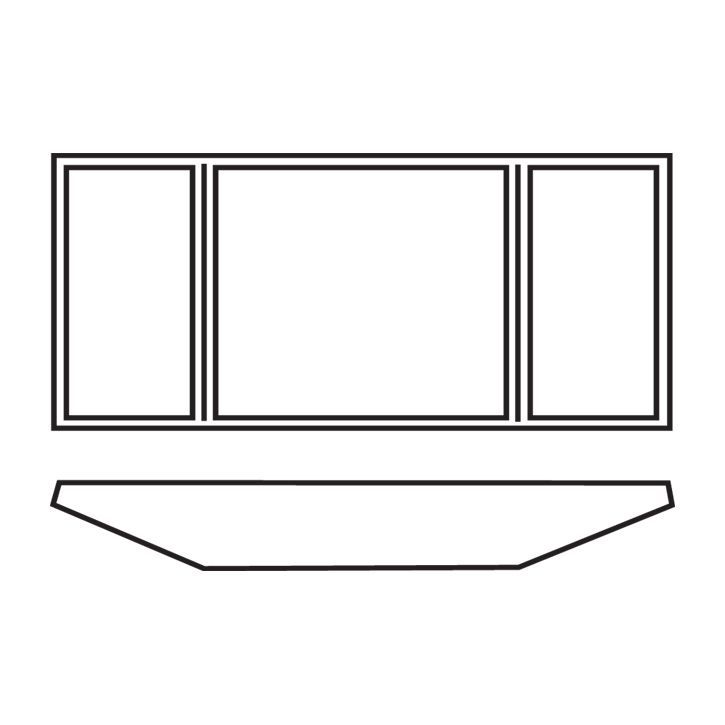

30° Angle Bay

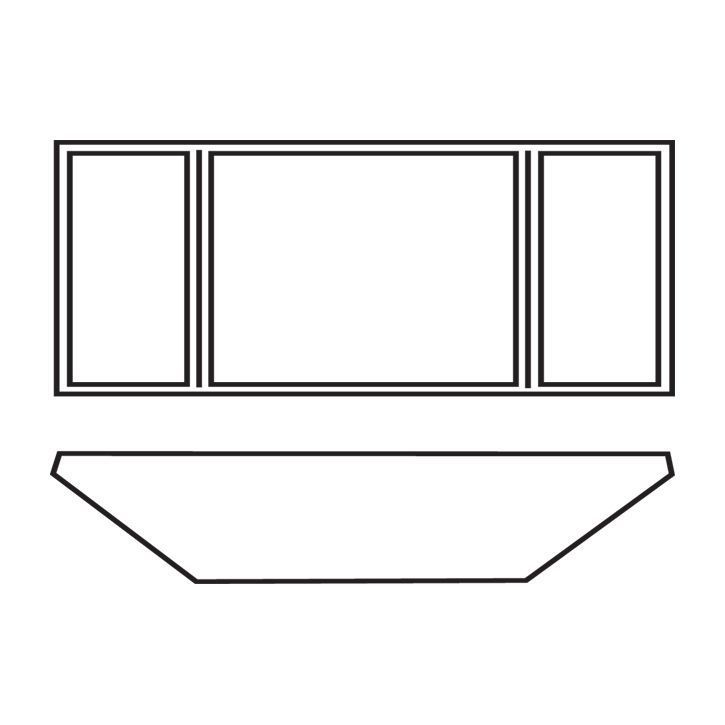

45° Angle Bay

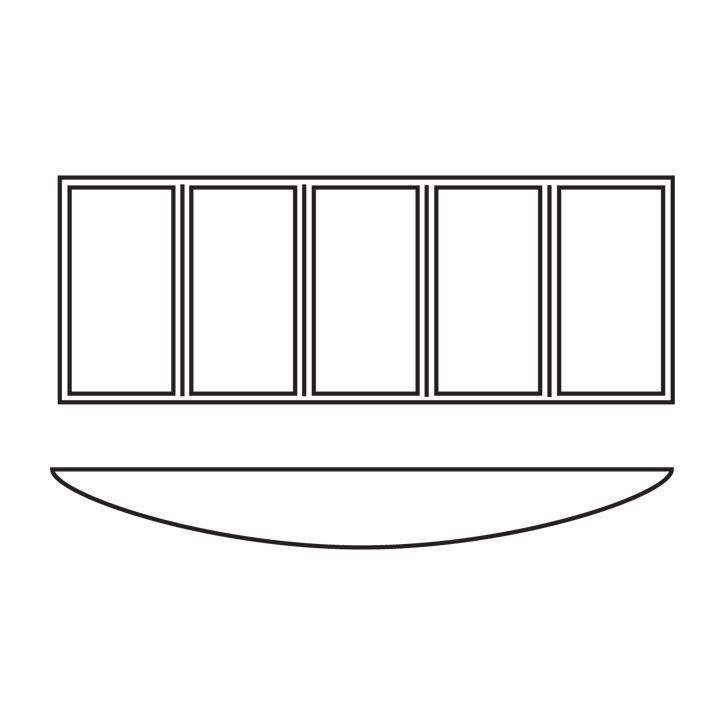

Bow window configuration (5)

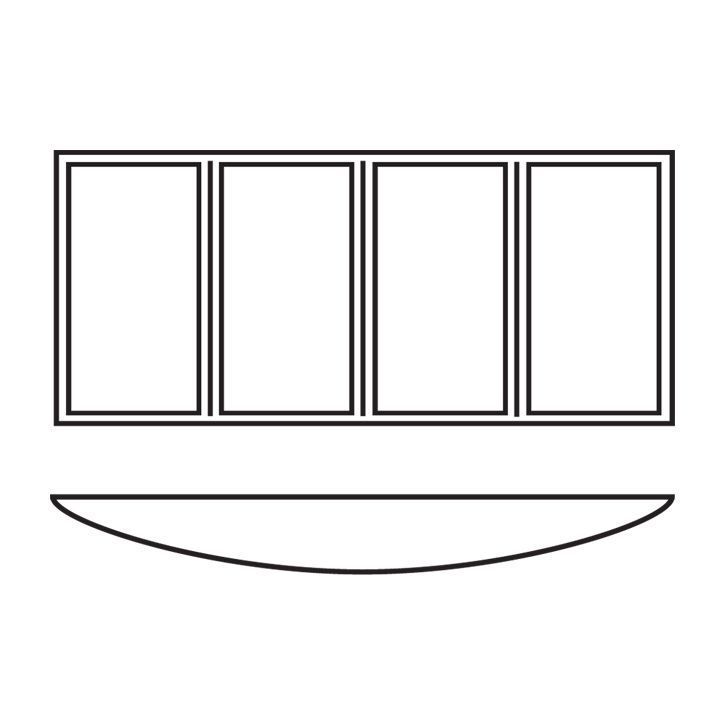

Bow window configuration (4)
