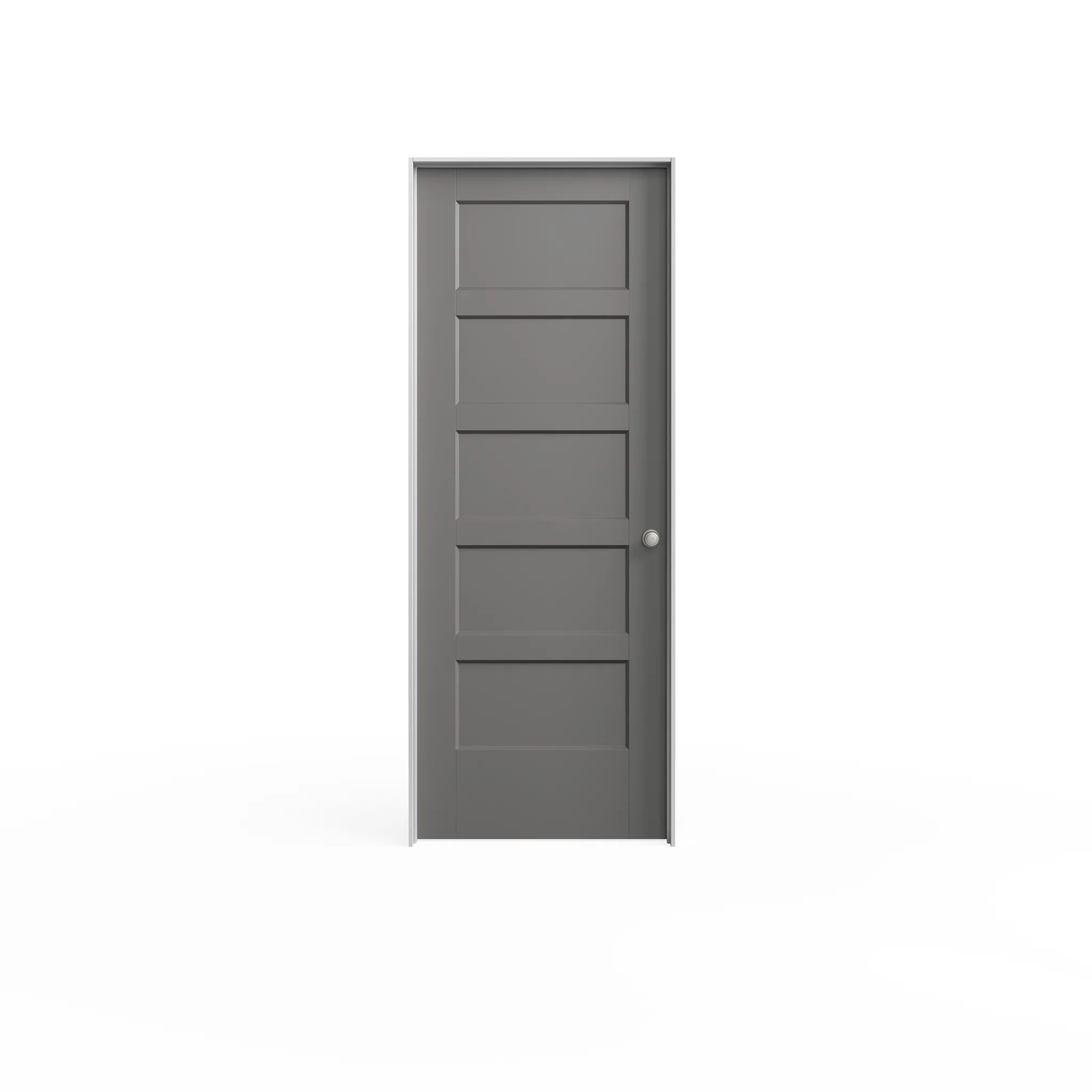

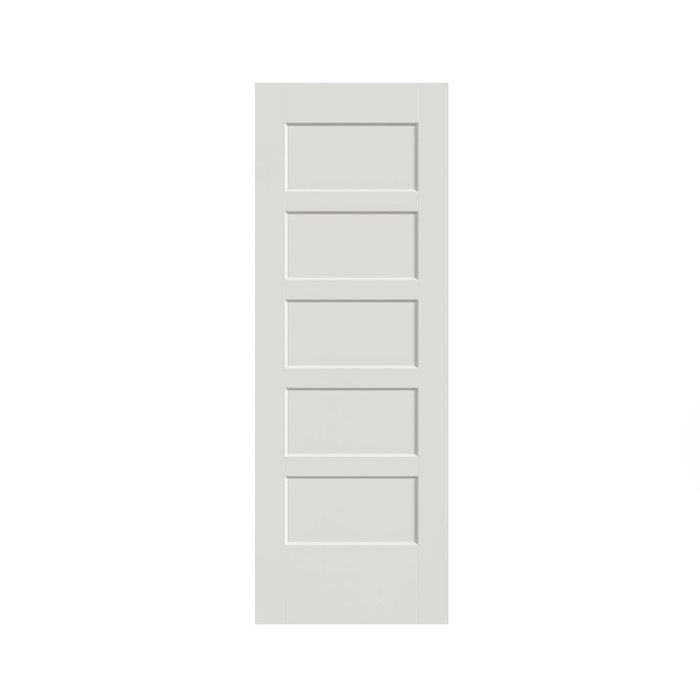

Bayshore 5 Panel Molded Shaker

Solid core doors help create quieter spaces with higher durability than hollow core doors. The additional material in the core increases density, providing the sturdiness and quality you can feel. They are available in a variety of designs to fit your style.

The Bayshore 5 Panel door versatile design matches any home style, while it is most compatible with craftsman and transitional styles. Coordinating bifold style is available.

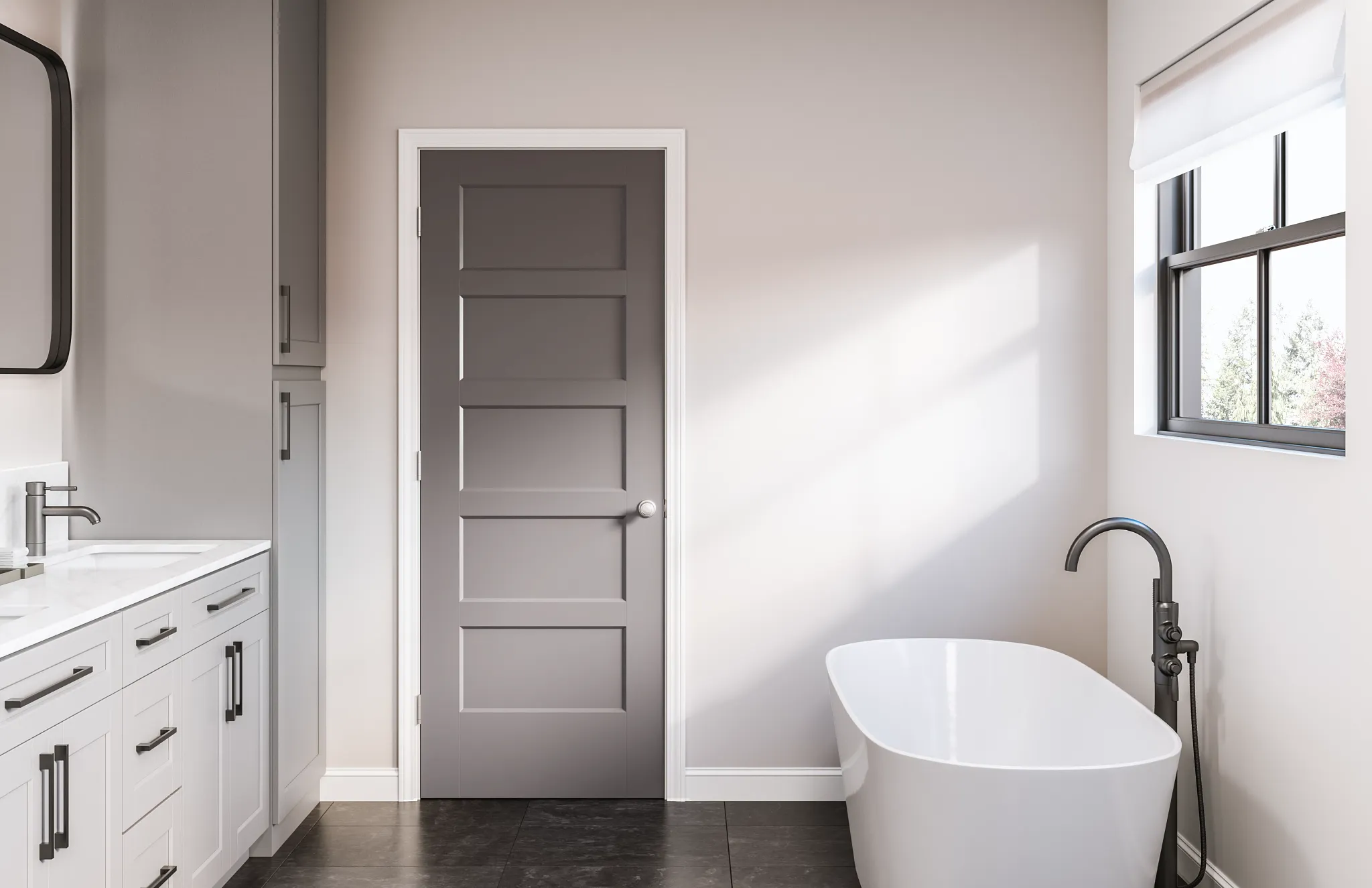

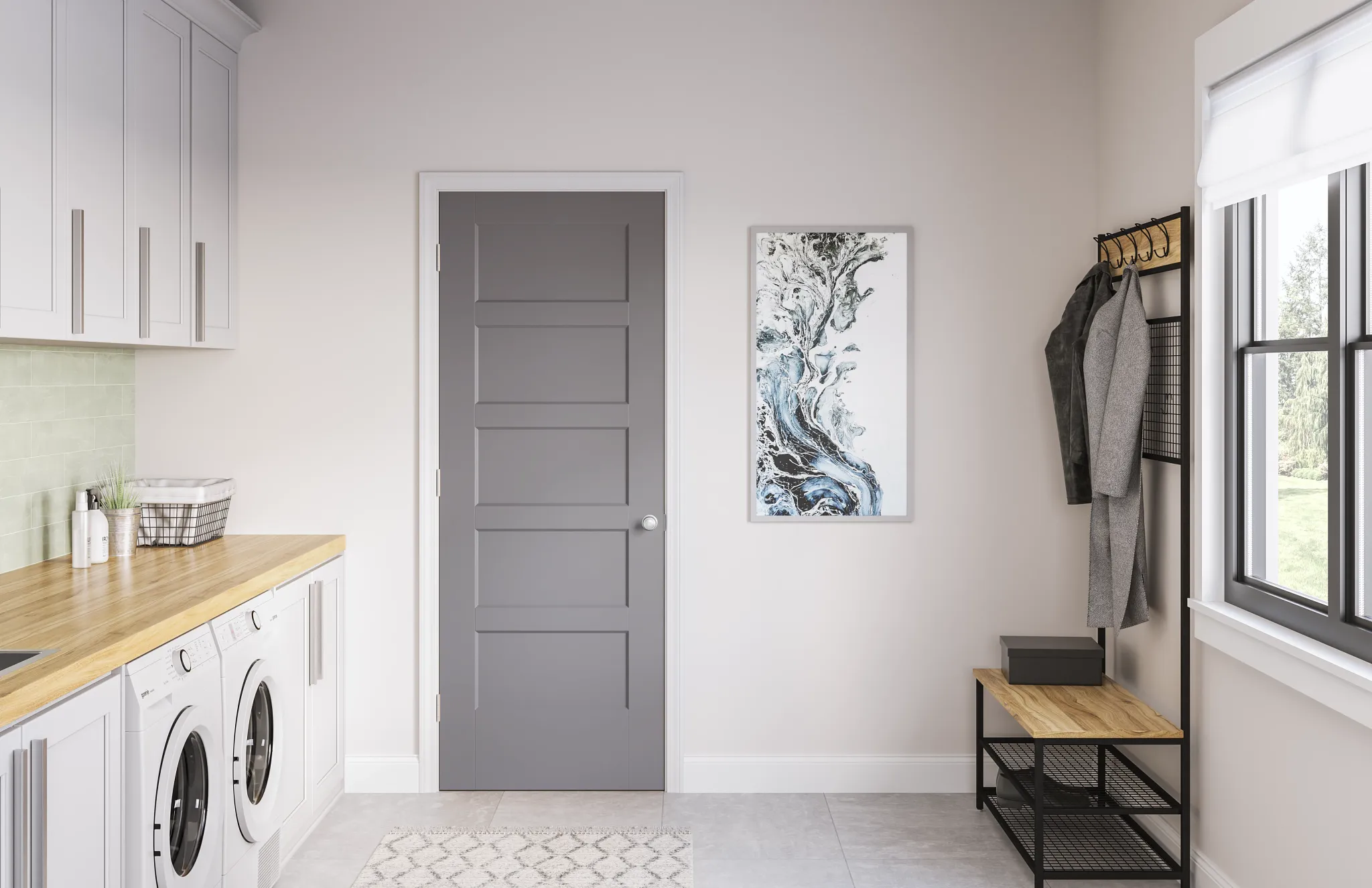

Solid core doors ensure noise control and privacy throughout the home. Ideal for rooms where noise control matters, such as laundry room, bedroom, bathroom and office.

Interior solid core door slab has a 7 year limited warranty and 1 year limited warranty for Masonite applied finishes.

Specification

  • Door can be ordered as slab or prehung with frame.
  • All slabs available with hollow core or Masonite’s Safe ‘N Sound® Solid Core construction for feel of solid wood with reduced sound transmission
  • Doors available in 1-3/8″ or 1-3/4″ thicknesses
  • Bifolds available in 1-3/8″ thickness; (see Size Options for specific widths and heights).
  • Resist warping, shrinking and cracking
  • Combines the classic lines of wood shaker doors with the durability of molded panel engineering
  • Emerald “green” specification offered for all styles with matching bifolds
  • Fire rating is available for 20 minutes.

Door Handing / Swing Configuration


Right Hand Active Outswing

Right Hand Active Inswing

Left Hand Active Outswing

Left Hand Active Inswing

Door Jamb

Door jamb with two stopers

Doors are hung on flat primed finger-jointed jambs or same species of wood as the door.
All Jambs come with choice of 2 door stops:
– Colonial stop
– Round edge stop

Standard Jamb Widths: 4-5/8″ and 4-7/8″ (standard 2×4 wall construction with either 1/2″ or 5/8″ drywall).
For custom size frames please call our experienced sales team at: 630.758.1740

Handle Preparation

Standard Handle Preparation
We will pre-drill the door for a handle with 2-3/8″ backset.

Hinges

– Square corner, 1/4″ radius corner or 5/8″ radius corner (standard)
– 3-1/2″ and 4″ full mortise hinge
– 6 knuckles, reversible design
– Steel base metal
– Three sets of hinges used on 80″ and 84″ high doors
– Four sets of hinges used on 96″ high doors
– Ball Bearing hinges available upon request

Polished Chrome

Brushed Chrome

Flat Black

Satin Nickel

Polished Nickel

Oil Rubbed Bronze

Antique Brass

Bright Brass

Pre-Hanging

Craftwood Doors & Windows can pre-hung a door and its components into a unit that is ready to set into a designed rough opening. The unit will be pre-hung in a frame made from the same or similar wood.
Each unit includes:

  • Standard Jamb: 4-5/8” or 4-7/8” width (standard 2×4 wall construction with either ½” or 5/8” drywall).
  • Residential grade plain-bearing hinges in Bright Brass, Antique Brass, Oil Rubbed Bronze, Polished Nickel, Satin Nickel, Flat Black, Brushed Chrome, Polished Chrome. Ball Bearing hinges available upon request
  • Bore: Single (2-3/8″ or 2-3/4″ backset)
  • Double Door: Include Wood “T” Astragal with Matching Flush Bolts (for active/inactive unit) or Ball Catches (for both active slabs unit)

Size Options

Open Sizing Chart

The height of the door can be cut down to accommodate your opening size.
